Storybook addons are a powerful way to extend Storybook's functionality and customize the development experience. They can be used to add new features, customize the UI, or integrate with third-party tools.
This reference guide is to help you develop a mental model for how Storybook addons work by building a simple addon based on the popular Outline addon. Throughout this guide, you'll learn how addons are structured, Storybook's APIs, how to test your addon locally, and how to publish it.
There are two main categories of addons, each with its role:
- UI-based: These addons are responsible for customizing the interface, enabling shortcuts for common tasks, or displaying additional information in the UI.
- Presets: These are pre-configured settings or configurations that enable developers to quickly set up and customize their environment with a specific set of features, functionality, or technology.

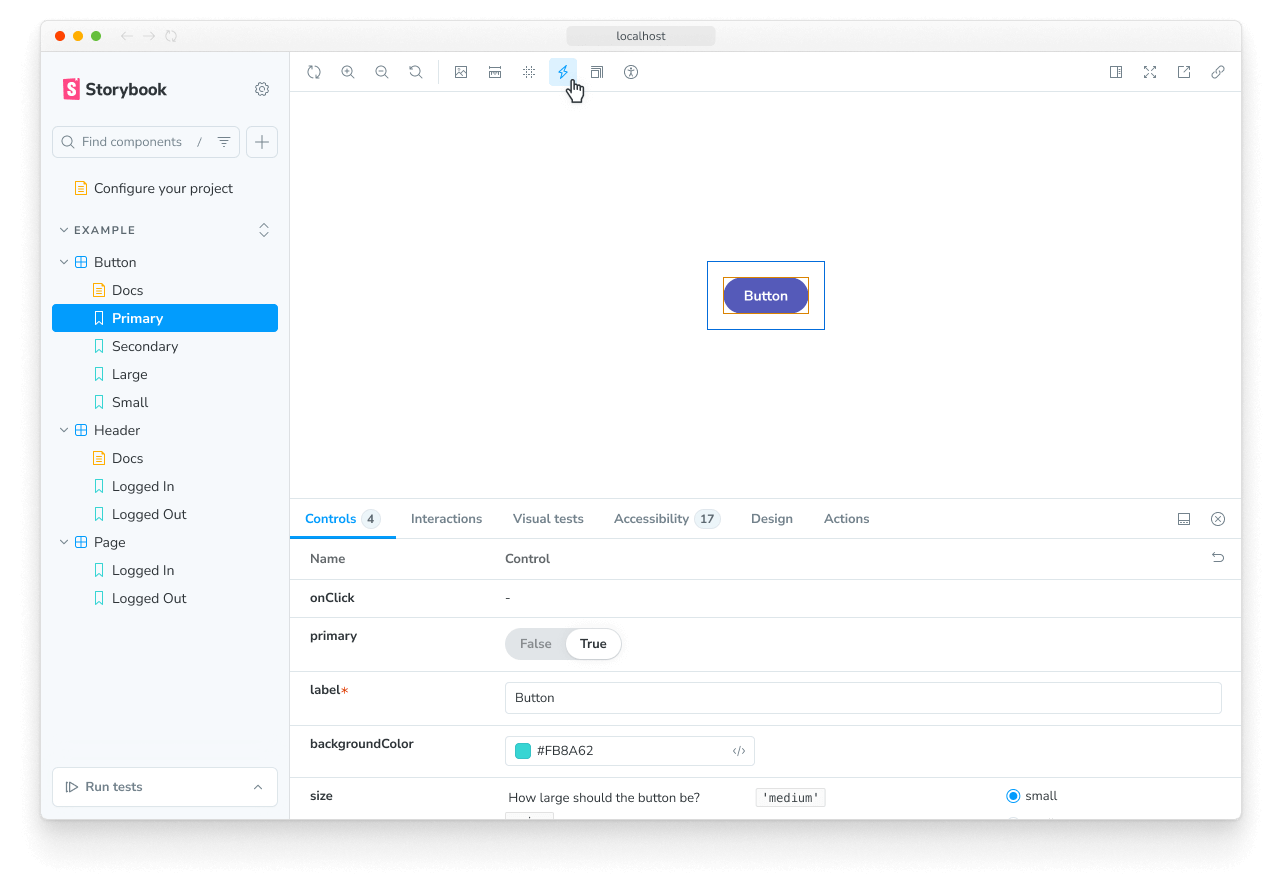

The addon built in this guide is a UI-based addon, specifically a toolbar addon, enabling users to draw outlines around each element in the story through a shortcut or click of a button. UI addons can create other types of UI elements, each with its function: panels and tabs, providing users with various ways to interact with the UI.
To create your first addon, you're going to use the Addon Kit, a ready-to-use template featuring all the required building blocks, dependencies and configurations to help you get started building your addon. In the Addon Kit repository, click the Use this template button to create a new repository based on the Addon Kit's code.
Clone the repository you just created and install its dependencies. When the installation process finishes, you will be prompted with questions to configure your addon. Answer them, and when you're ready to start building your addon, run the following command to start Storybook in development mode and develop your addon in watch mode:
tsup configuration file that you can use to customize the build process of your addon.
When the build scripts run, it will look for the configuration file and pre-bundle the addon's code based on the configuration provided. Addons can interact with Storybook in various ways. They can define presets to modify the configuration, add behavior to the manager UI, or add behavior to the preview iframe. These different use cases require different bundle outputs because they target different runtimes and environments. Presets are executed in a Node environment. Storybook's manager and preview environments provide certain packages in the global scope, so addons don't need to bundle them or include them as dependencies in their
tsup configuration handles these complexities by default, but you can customize it according to their requirements. For a detailed explanation of the bundling techniques used, please refer to the README of the addon-kit, and check out the default
tsup configuration here.
By default, code for the UI-based addons is located in one of the following files, depending on the type of addon built:
src/Tab.tsx. Since we're building a toolbar addon, we can safely remove the
Tab files and update the remaining file to the following:
Going through the code blocks in sequence:
useStorybookApi hooks from the
manager-api package are used to access the Storybook's APIs, allowing users to interact with the addon, such as enabling or disabling it. The
IconButtons components from the
@storybook/components package render the icons and buttons in the toolbar.
Tool component is the entry point of the addon. It renders the UI elements in the toolbar, registers a keyboard shortcut, and handles the logic to enable and disable the addon.
Moving onto the manager, here we register the addon with Storybook using a unique name and identifier. Since we've removed the
Tab files, we'll need to adjust the file to only reference the addon we're building.
match property. It allows you to control the view mode where the addon is visible. If you only want to show it in a single mode, you must adjust the property to match the specific mode you aim for. In this case, it will be available in both story and documentation.
start script to build and start Storybook and verify that the addon is registered correctly and showing in the UI.
In Storybook, applying styles for addons is considered a side-effect. Therefore, we'll need to make some changes to our addon to allow it to use the styles when it is active and remove them when it's disabled. We're going to rely on two of Storybook's features to handle this: decorators and globals. To handle the CSS logic, we must include some helper functions to inject and remove the stylesheets from the DOM. Start by creating the helper file with the following content:
Next, create the file with the styles we want to inject with the following content:
Since the addon can be active in both the story and documentation modes, the DOM node for Storybook's preview
iframe is different in these two modes. In fact, Storybook renders multiple story previews on one page when in documentation mode. Therefore, we'll need to choose the correct selector for the DOM node where the styles will be injected and ensure the CSS is scoped to that particular selector. That mechanism is provided as an example within the
src/withGlobals.ts file, which we'll use to connect the styling and helper functions to the addon logic. Update the file to the following:
- Have a
distfolder with the transpiled code.
- Peer dependencies
- Module-related information
- Integration catalog metadata
The first category of metadata is related to the addon itself. This includes the entry for the module and which files to include when the addon is published. And all the peer-dependencies of the addon (e.g.,
react-dom, and Storybook's related APIs).
The second metadata category is related to the integration catalog. Most of this information is already pre-configured by the Addon Kit. However, items like the display name, icon, and frameworks must be configured via the
storybook property to be displayed in the catalog.
storybook configuration element includes additional properties that help customize the addon's searchability and indexing. For more information, see the Integration catalog documentation.
One essential item to note is the
keywords property as it maps to the catalog's tag system. Adding the
storybook-addons ensures that the addon is discoverable in the catalog when searching for addons. The remaining keywords help with the searchability and categorization of the addon.
Once you're ready to publish your addon to NPM, the Addon Kit comes pre-configured with the Auto package for release management. It generates a changelog and uploads the package to NPM and GitHub automatically. Therefore, you need to configure access to both.
- Authenticate using npm adduser
- Generate a access token with both
- Create a personal access token with
- Create a
.envfile in the root of your project and add the following:
Next, run the following command to create labels on GitHub. You'll use these labels to categorize changes to the package.
Finally, run the following command to create a release for your addon. This will build and package the addon code, bump the version, push the release into GitHub and npm, and generate a changelog.

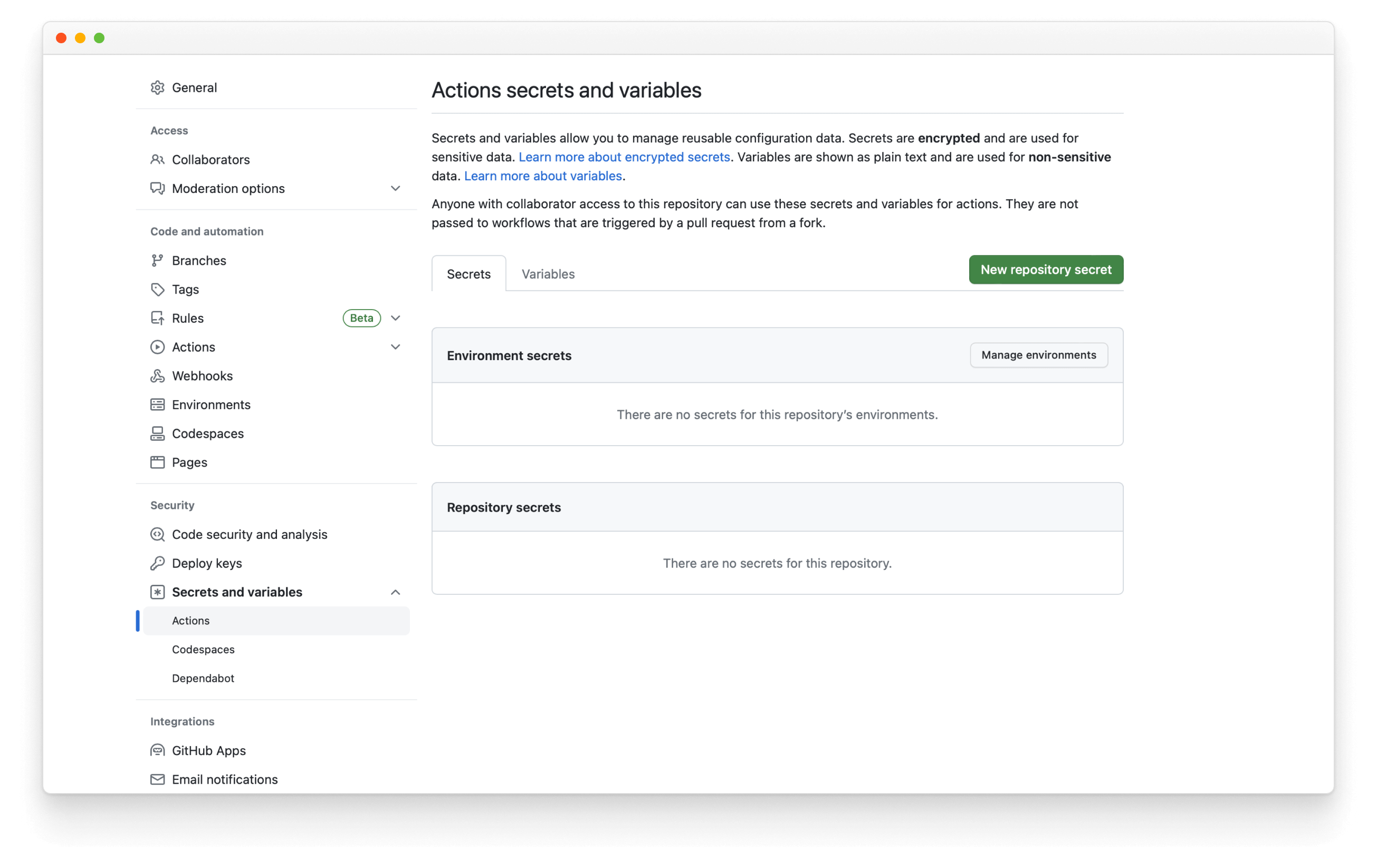

By default, the Addon Kit comes pre-configured with a GitHub Actions workflow, enabling you to automate the release management process. This ensures that the package is always up to date with the latest changes and that the changelog is updated accordingly. However, you'll need additional configuration to use your NPM and GitHub tokens to publish the package successfully. In your repository, click the Settings tab, then the Secrets and variables dropdown, followed by the Actions item. You should see the following screen:
Then, click the New repository secret, name it
NPM_TOKEN, and paste the token you generated earlier. Whenever you merge a pull request to the default branch, the workflow will run and publish a new release, automatically incrementing the version number and updating the changelog.
