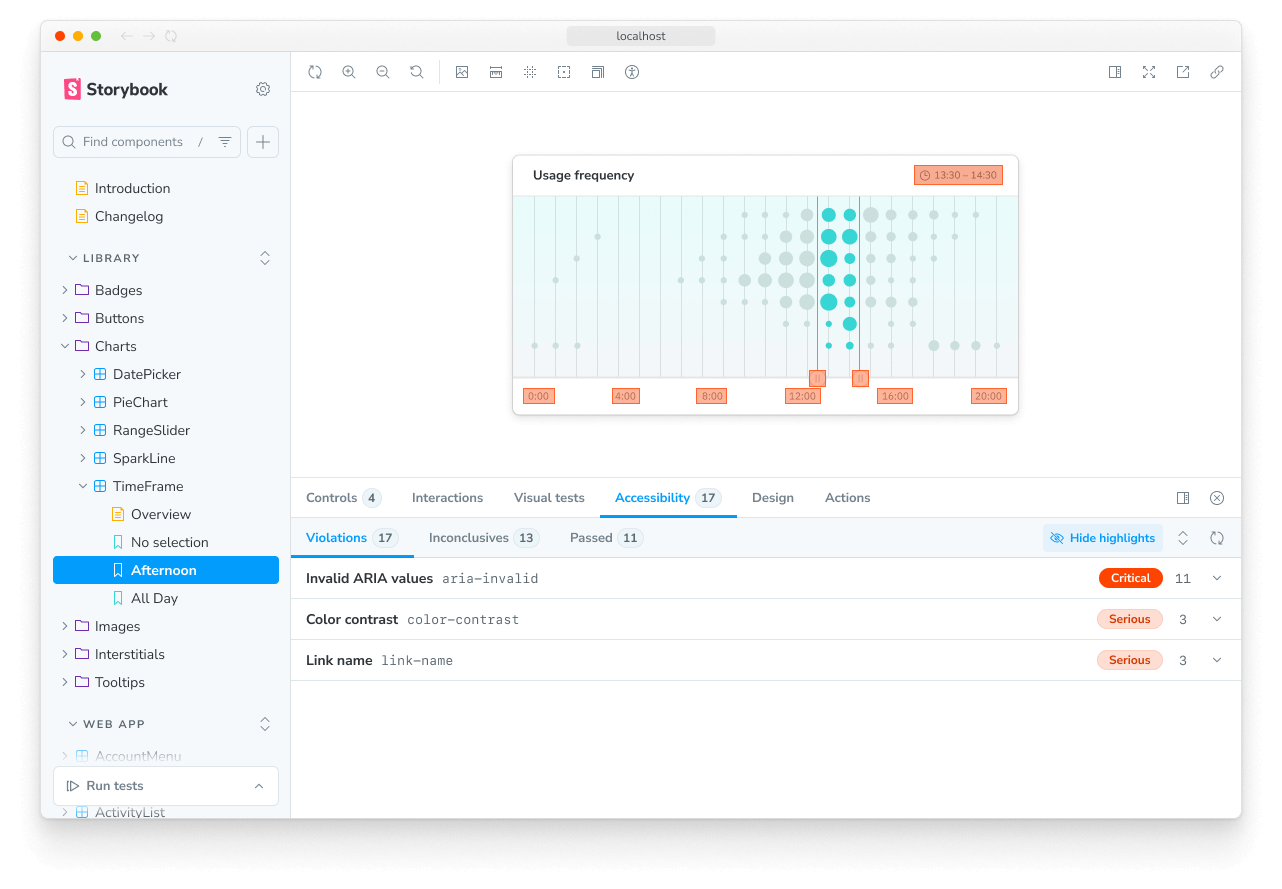

Storybook's Highlight addon is a helpful tool for visually debugging your components, allowing you to highlight specific DOM nodes within your story when used as a standalone addon or enhancing other addons such as the Accessibility addon to inform you of accessibility issues within your components.
To highlight DOM elements with the addon, you'll need to emit the
HIGHLIGHT event from within a story or an addon. The event payload must contain an
elements property assigned to an array of selectors matching the elements you want to highlight. For example:
We recommend choosing the most specific selector possible to avoid highlighting elements other addons use. This is because the addon tries to match selectors against the entire DOM tree.
Out of the box, Storybook automatically removes highlighted elements when transitioning between stories. However, if you need to clear them manually, you can emit the
RESET_HIGHLIGHT event from within a story or an addon. For example:
emit function derived from the
useChannel API hook creates a communication channel in Storybook's UI to listen for events and update the UI accordingly. The Highlight addon uses this channel to listen to custom events and update the highlighted elements (if any) accordingly.
By default, the addon applies a standard style to the highlighted elements you've enabled for the story. However, you can enable your custom style by extending the payload object and providing a
style properties. For example:
This addon contributes the following parameters to Storybook, under the
Disable this addon's behavior. If you wish to disable this addon for the entire Storybook, you should do so when registering
addon-essentials. See the essential addon's docs for more information.
This parameter is most useful to allow overriding at more specific levels. For example, if this parameter is set to
true at the project level, it could then be re-enabled by setting it to
false at the meta (component) or story level.
This addon contributes the following exports to Storybook:
An event that highlights DOM elements. The event payload must contain an
elements property assigned to an array of selectors matching the elements you want to highlight. See the usage example, above.
An event to clear all highlights from highlighted elements. See the usage example, above.
