Types of addons
Each Storybook addon is classified into two general categories, UI-based or Presets. Each type of addons feature is documented here. Use this as a reference when creating your addon.
UI-based addons
UI-based addons allow you to customize Storybook's UI with the following elements.
Panels

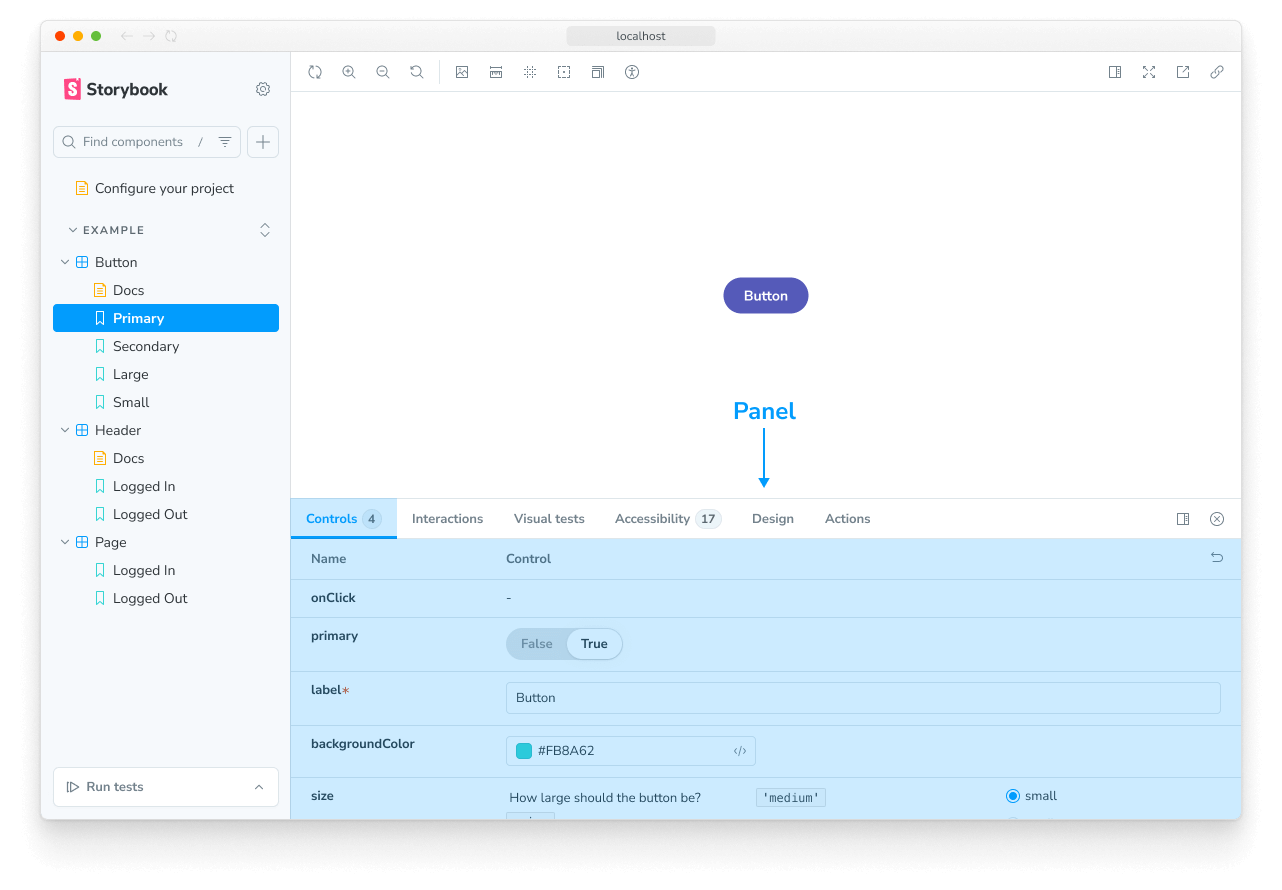

Panel addons allow you to add your own UI in Storybook's addon panel. This is the most common type of addon in the ecosystem. For example, the official @storybook/actions and @storybook/a11y use this pattern.
Use this boilerplate code to add a new Panel to Storybook's UI:
import React from 'react';
import { AddonPanel } from '@storybook/components';
import { useGlobals, addons, types } from '@storybook/manager-api';
addons.register('my/panel', () => {
addons.add('my-panel-addon/panel', {
title: 'Example Storybook panel',
//👇 Sets the type of UI element in Storybook
type: types.PANEL,
render: ({ active }) => (
<AddonPanel active={active}>
<h2>I'm a panel addon in Storybook</h2>
</AddonPanel>
),
});
});Toolbars

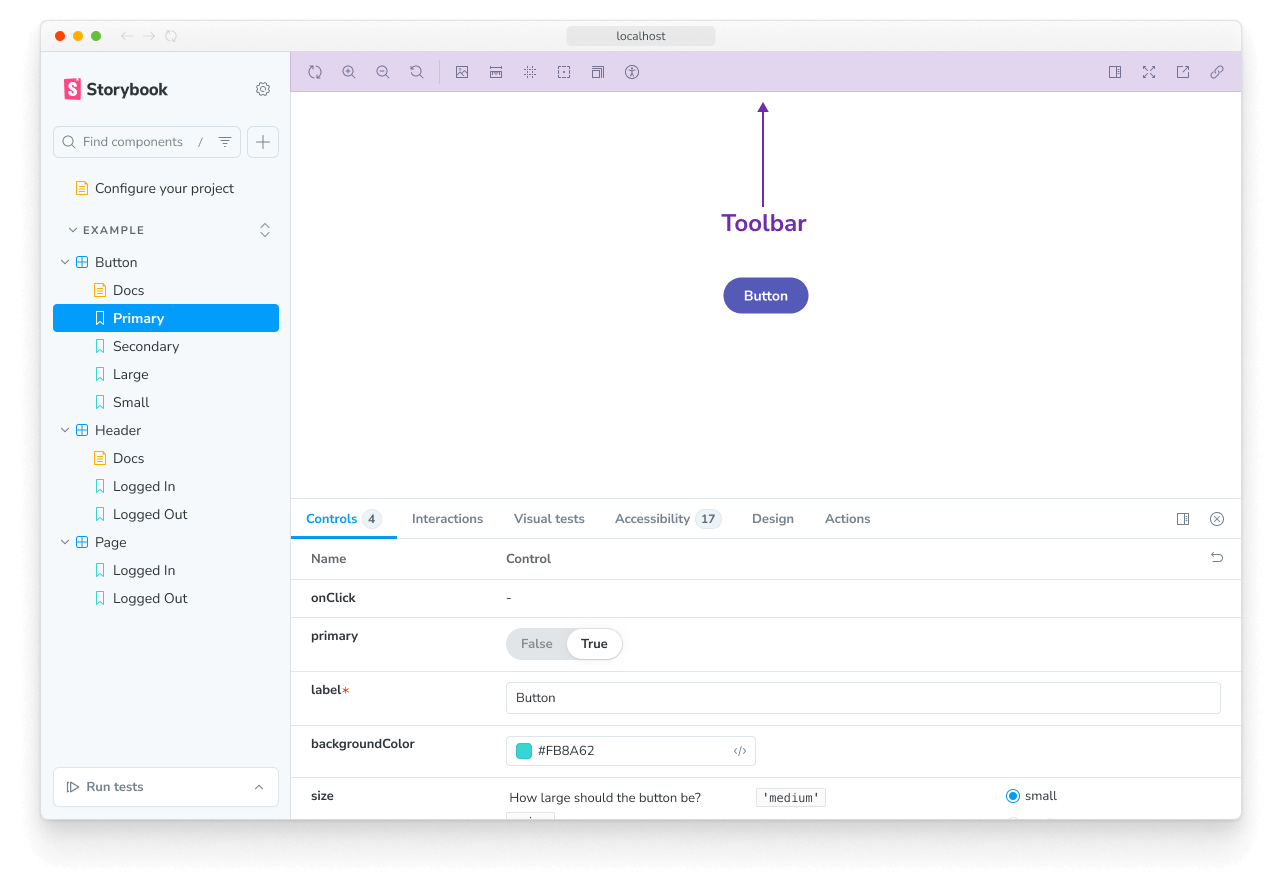

Toolbar addons allow you to add your own custom tools in Storybook's Toolbar. For example, the official @storybook/backgrounds and the @storybook/addon-outline use this pattern.
Use this boilerplate code to add a new button to Storybook's Toolbar:
import React from 'react';
import { addons, types } from '@storybook/manager-api';
import { IconButton } from '@storybook/components';
import { OutlineIcon } from '@storybook/icons';
addons.register('my-addon', () => {
addons.add('my-addon/toolbar', {
title: 'Example Storybook toolbar',
//👇 Sets the type of UI element in Storybook
type: types.TOOL,
//👇 Shows the Toolbar UI element if the story canvas is being viewed
match: ({ tabId, viewMode }) => !tabId && viewMode === 'story',
render: ({ active }) => (
<IconButton active={active} title="Show a Storybook toolbar">
<OutlineIcon />
</IconButton>
),
});
});The match property allows you to conditionally render your toolbar addon, based on the current view. The icon element used in the example loads the icons from the @storybook/components package. See here for the list of available icons that you can use.
Tabs

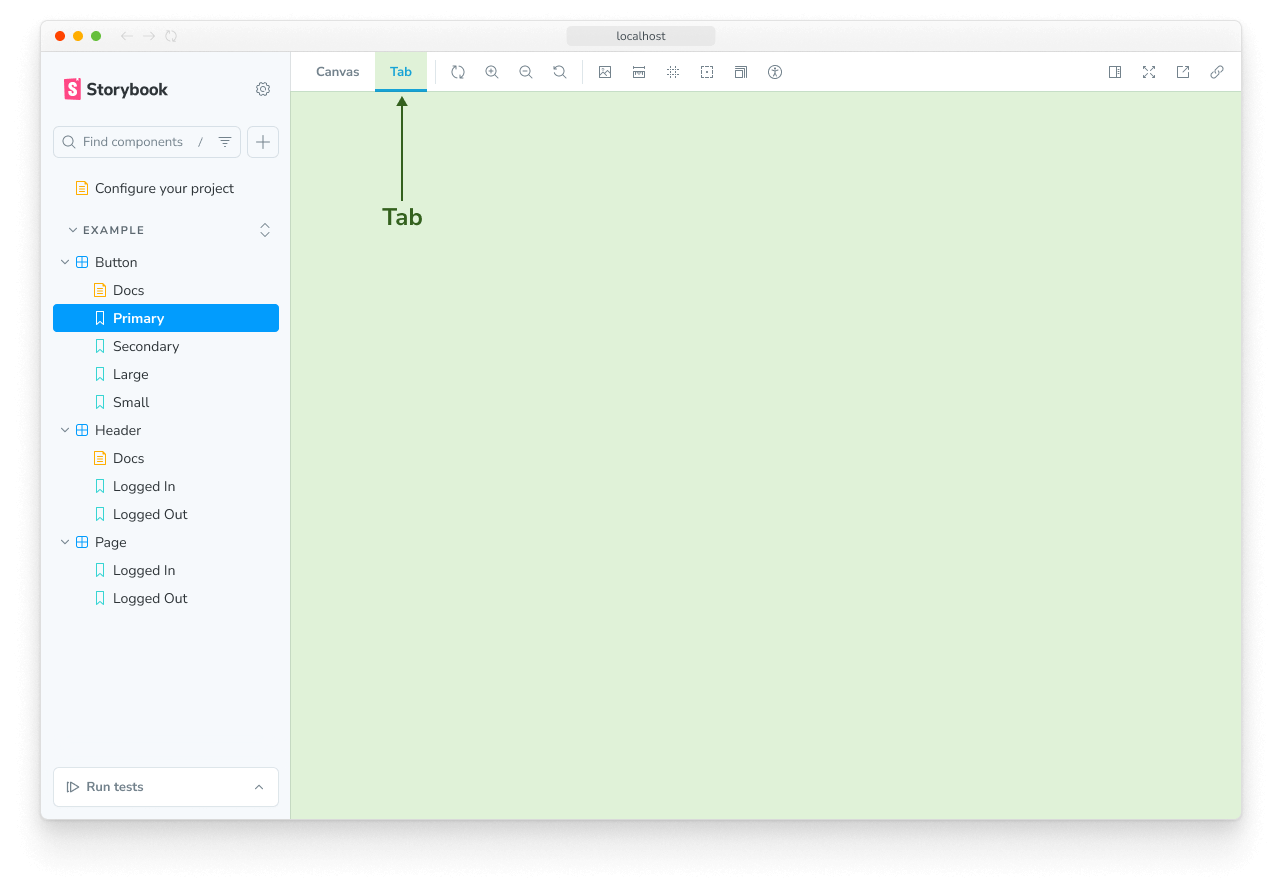

Tab addons allow you to create your own custom tabs in Storybook. For example, the official @storybook/addon-docs uses this pattern.
Use this boilerplate code to add a new Tab to Storybook's UI:
import React from 'react';
import { addons, types } from '@storybook/manager-api';
addons.register('my-addon', () => {
addons.add('my-addon/tab', {
type: types.TAB,
title: 'Example Storybook tab',
render: () => (
<div>
<h2>I'm a tabbed addon in Storybook</h2>
</div>
),
});
});Learn how to write your own addon that includes these UI elements here.
Preset addons
Storybook preset addons are grouped collections of babel, webpack, and addons configurations to integrate Storybook and other technologies. For example the official preset-create-react-app.
Use this boilerplate code while writing your own preset addon.
export default {
managerWebpack: async (config, options) => {
// Update config here
return config;
},
webpackFinal: async (config, options) => {
return config;
},
babel: async (config, options) => {
return config;
},
};Learn more about the Storybook addon ecosystem
